20 Bar Espresso Machine with Built-In Grinder and Steam Wand

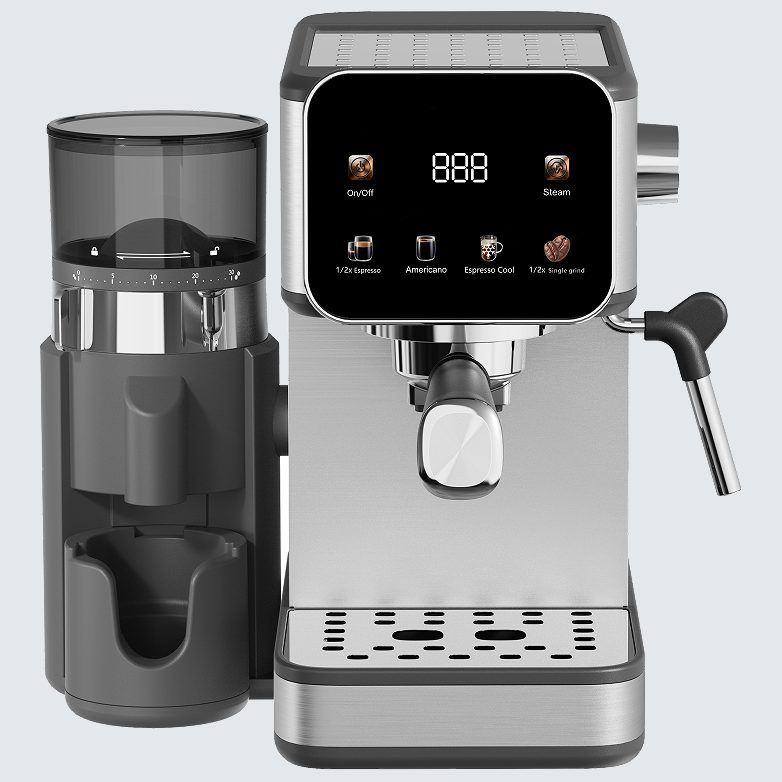

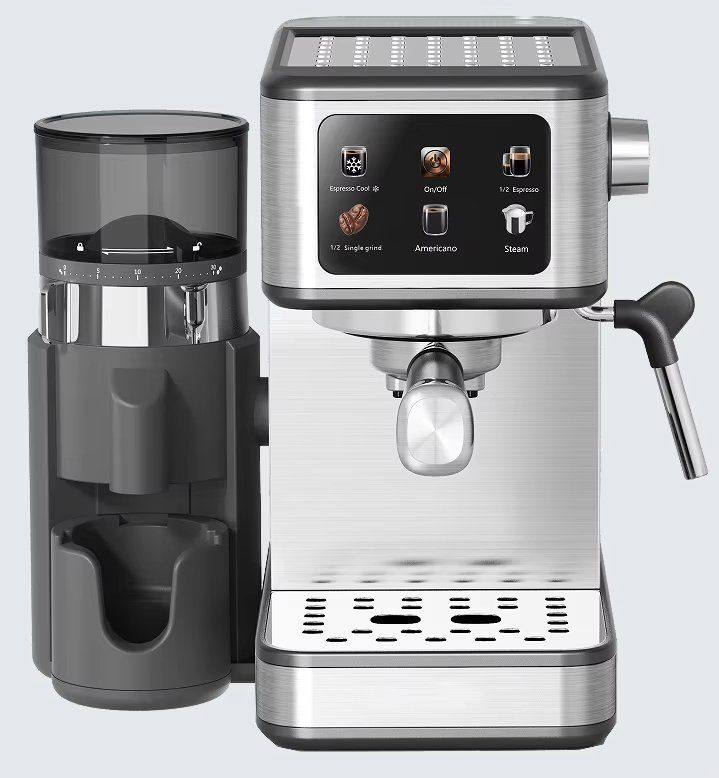

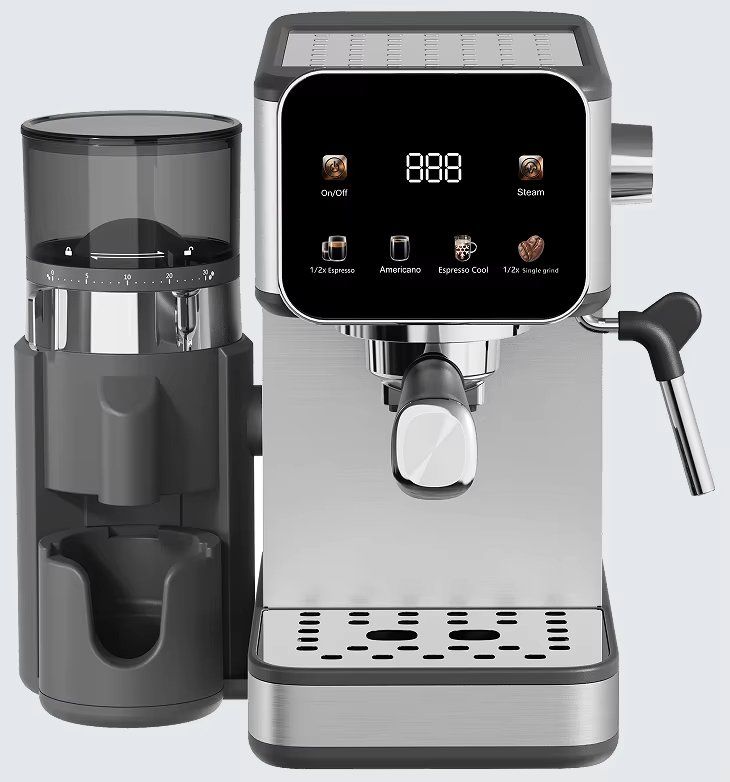

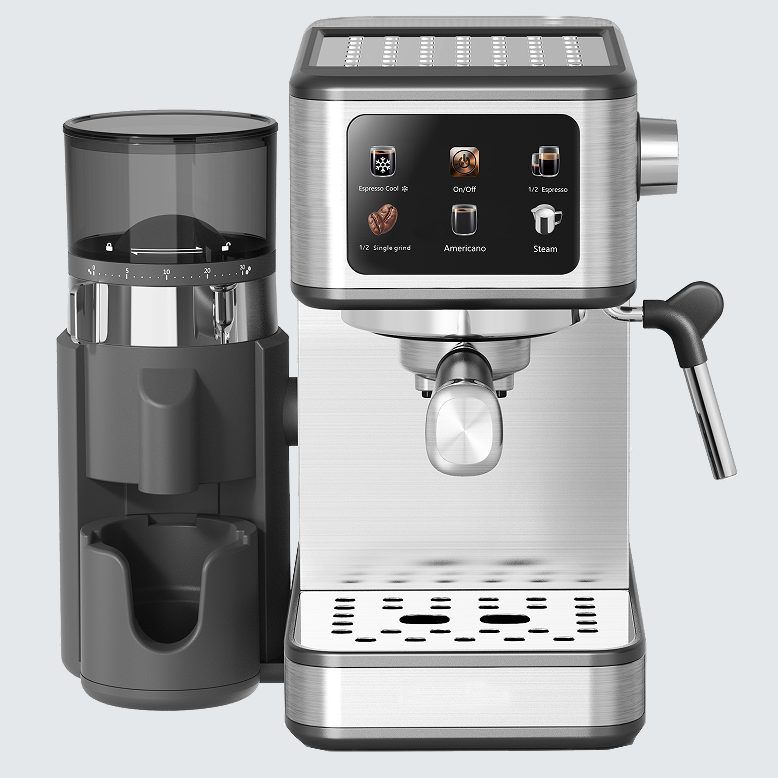

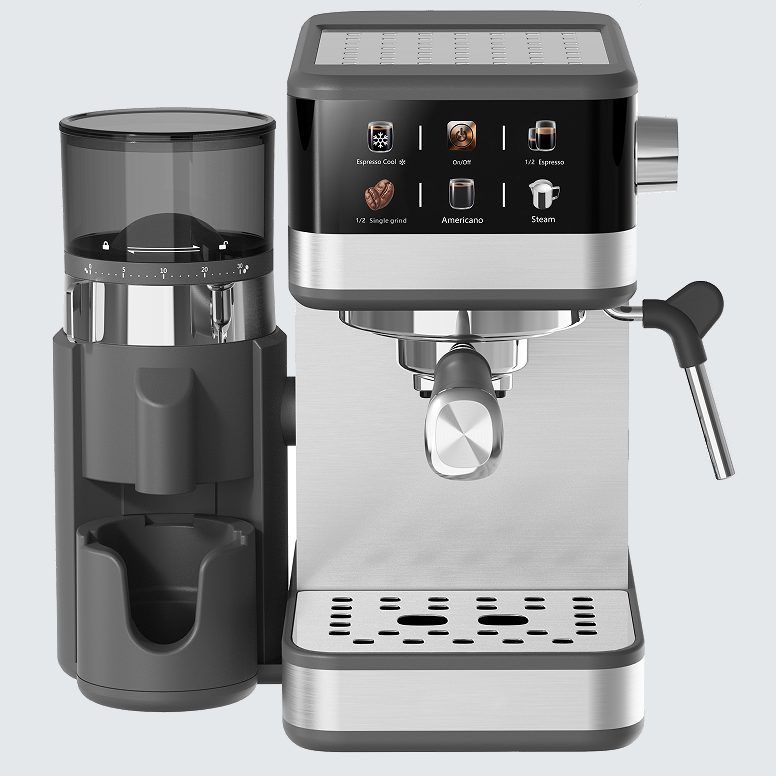

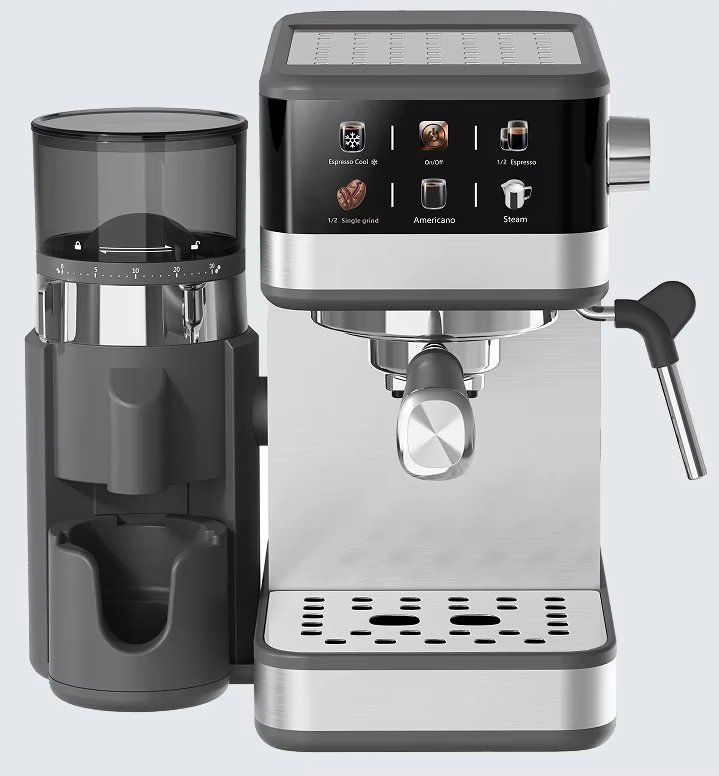

Two towers on one base: the left one grinds, the right one brews. Beans go into the hopper on the left, the dial under it sets the grind on a 0-30 scale, and the ground coffee falls straight into the portafilter instead of onto a scale and then into a second machine. On the right, a 20 bar pump and a 1350 W heater feed a group head with a chrome portafilter, a steam wand for milk and a hot-water outlet. The front is a colour LED touch screen with one-touch keys for single and double espresso, Americano, espresso cool, single grind and steam, and a numeric readout while the shot runs. The water tank holds 1.2 L and sits behind the group head, so refilling does not mean moving the machine on the counter. Two cups come out at a time. The body is stainless steel at 305 × 215 × 284 mm — low enough to sit under a wall cabinet without pulling it off the wall for a refill. Four model versions are listed: two JW-526-MD builds, one with a round LED display and one with a square touchscreen, plus the JW-519-MD and the JW-525-MD. Built for 110-120 V or 220-240 V with US, EU, UK and AU plugs, packed in corrugated, colour or gift cartons, one-year warranty.
$72.09
Variant
Select variants and quantity, then add them to your quote list. Price, stock, lead time and shipping are confirmed before the order.
20 bar pump with a 1350 W heater — the supplier lists the pump at 20 Bars
Grinder built into the left tower with a 0-30 grind dial
Colour LED touch screen: single/double espresso, Americano, espresso cool, single grind, steam
1.2 L water tank behind the group head, two cups at a time
Steam wand for milk plus a hot-water outlet
Stainless steel body, 305 × 215 × 284 mm; 110-120 V or 220-240 V with US, EU, UK or AU plugs
Specifications15 of 15 dimensions carry a verified value.
PricePer unit, ex-works. Freight quoted separately.
$72.09
Product typeWhere the model is designed to be used
countertop
Heating / rated powerElectrical rating
1350 W
Pump pressureEspresso extraction pressure
20 bar
Water capacityTank or reservoir volume
1200 ml
Machine typeAs classified by the supplier
Automatic espresso machine with built-in grinder
Housing materialBody and panel material
Stainless steel
Cup capacitySupplier-rated cup capacity
2 cups
Control modeHow the settings are changed
Digital touch control
FunctionsModes named on the supplier sheet
Single service, hot water system, steam wand, built-in grinder
WarrantyTerm stated by the supplier
1 year
Packaging optionsCarton types offered in bulk
Corrugated box, colour box, gift box
Rated voltageMust match the destination supply
110-120 V / 220-240 V
Plug typeA plug adapter does not change voltage
US / EU / UK / AU
DimensionsWidth x height x depth
305 x 215 x 284 mm
For wholesale and OEM enquiries, request the verified specification sheet for the exact model.Request verified specifications
Where it works
Small cafes and kiosks
Grinder and brewer in one 305 mm-wide footprint, so a two-person counter can serve espresso and milk drinks without buying a second machine or giving up the space to a standalone grinder.
Offices and showrooms
One-touch Americano and espresso with the grind set once in the morning, instead of a bag of pre-ground coffee going flat by Thursday.
Home kitchens with a coffee habit
Fresh-ground shots without a separate grinder on the counter, and a steam wand for a flat white when someone asks for one.
Questions before you order
Is the grinder built in, or is it a separate appliance?
Built in. The bean hopper and the 0-30 grind dial sit on the left tower and drop grounds straight into the portafilter cradle.
How big is the water tank?
1.2 L, mounted behind the group head.
Which voltage and plug do I get?
The listing is built for 110-120 V or 220-240 V with US, EU, UK or AU plugs. Tell us the market when you request a quote so the right version is quoted rather than an adaptor being added later.
What is the difference between the four versions?

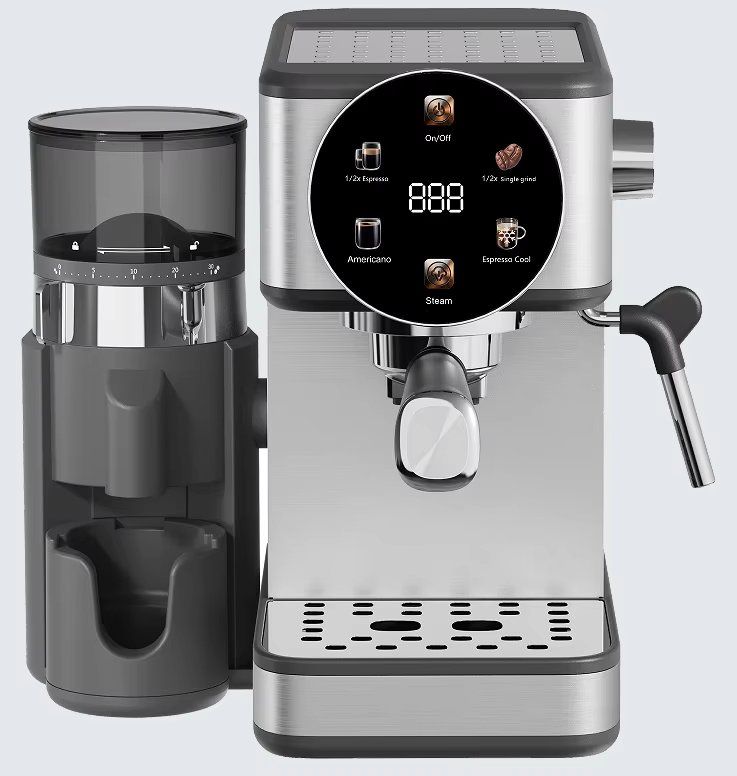

Two of them are the JW-526-MD — one with a round LED display, one with a square touchscreen — and the other two are the JW-519-MD and the JW-525-MD. The supplier lists a single 20 bar pressure rating and a single 1.2 L tank across the listing.
